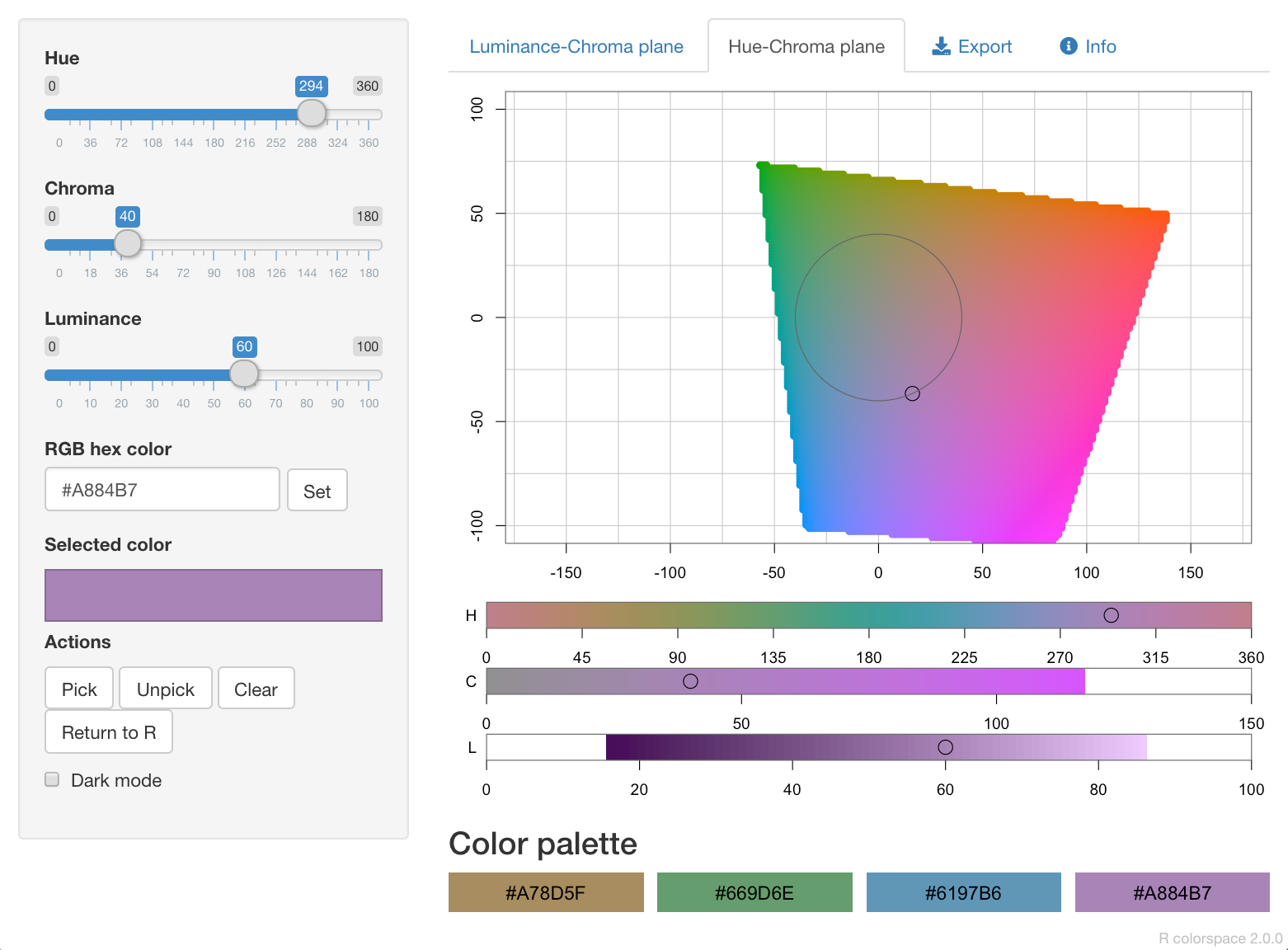

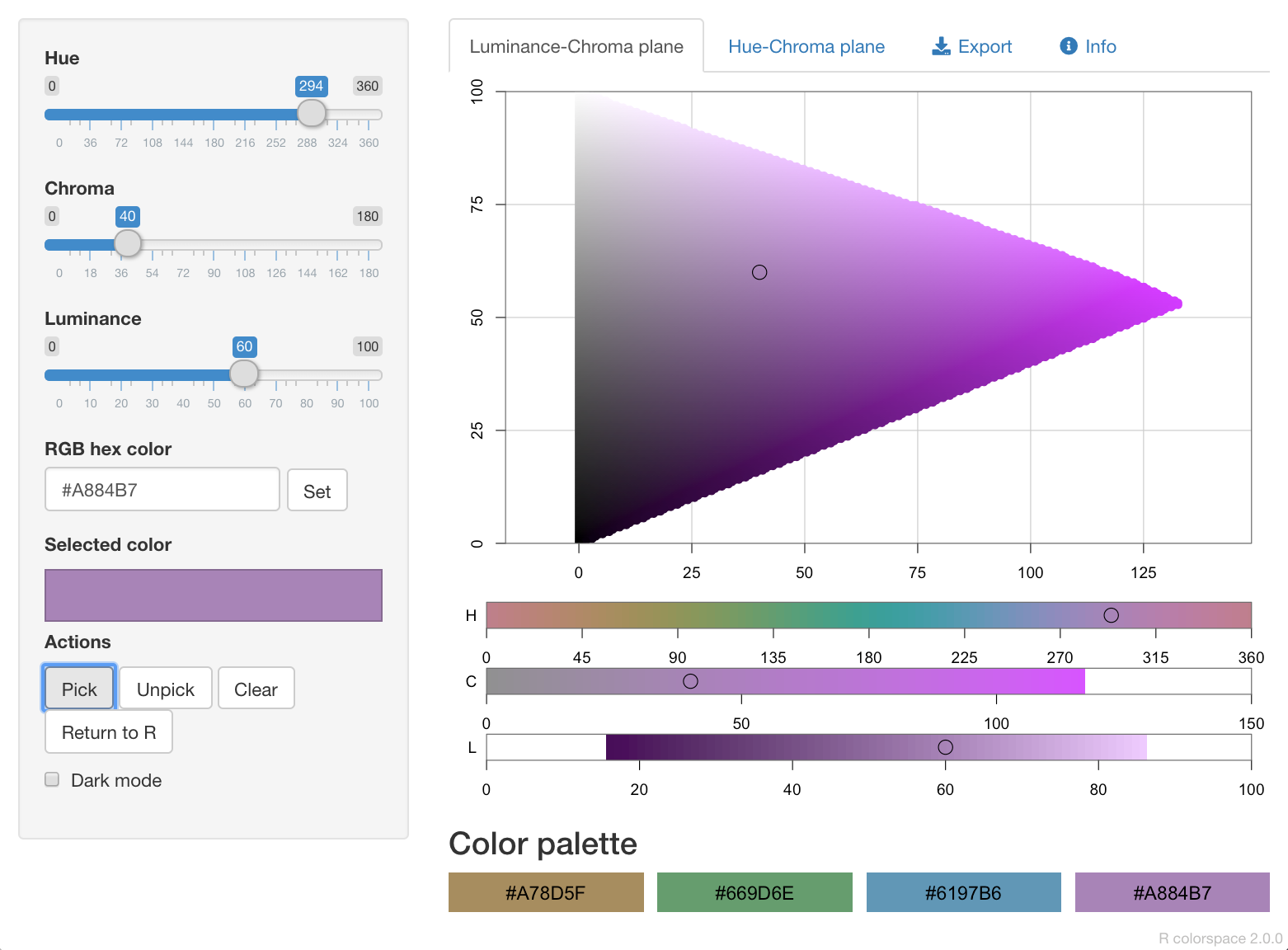

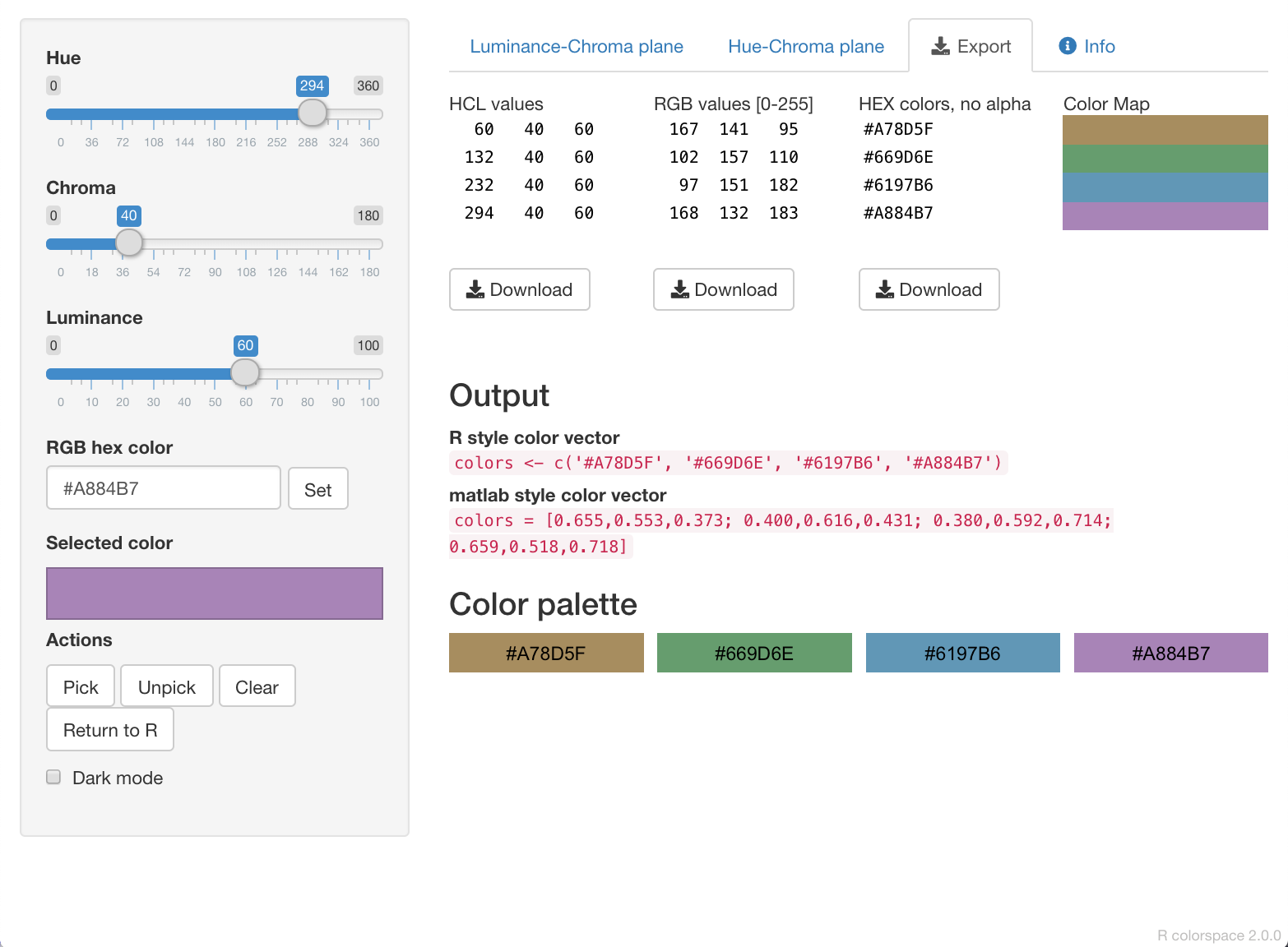

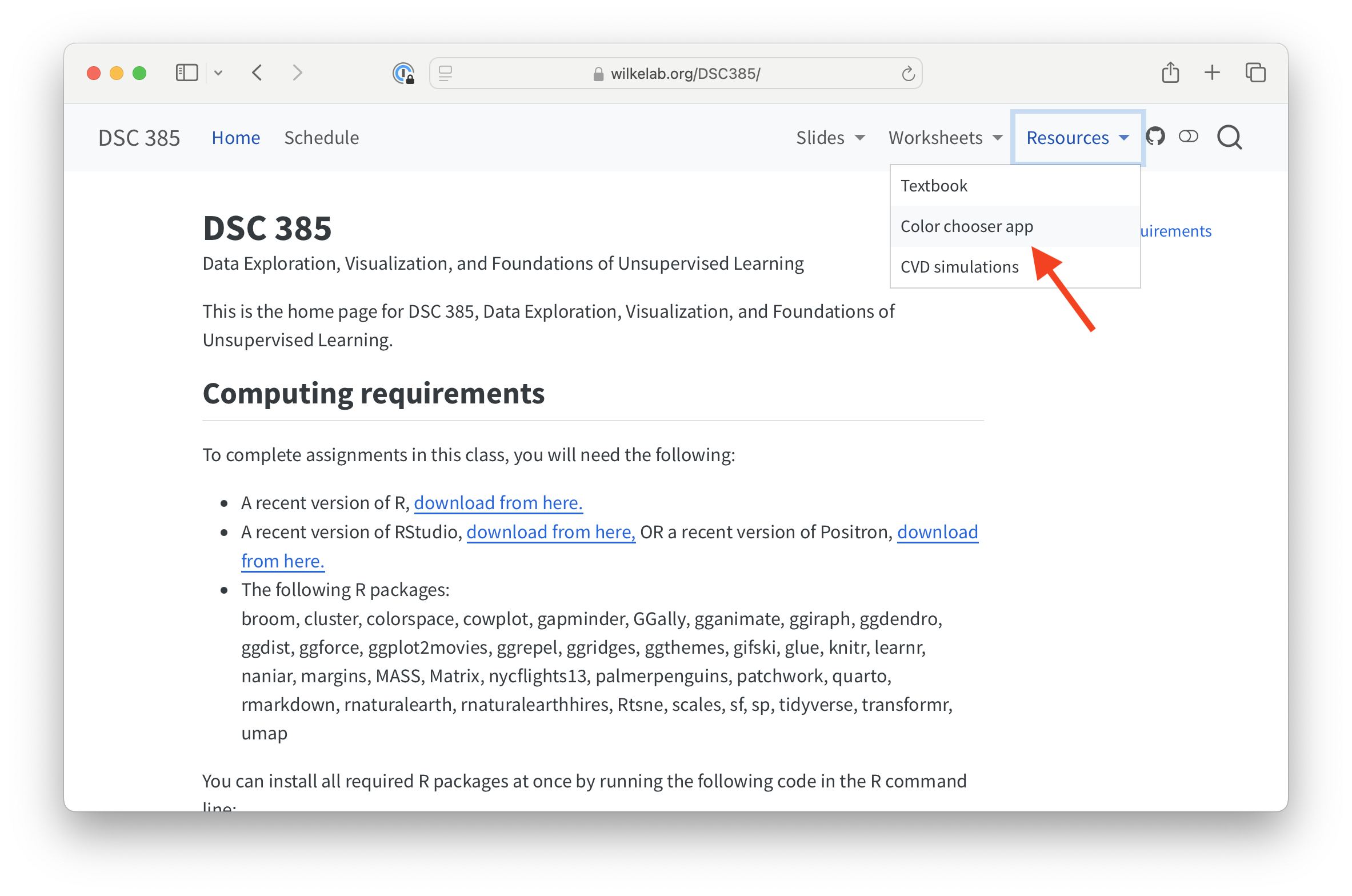

class: center, middle, title-slide # Color spaces and color-vision deficiency ### Claus O. Wilke ### last updated: 2021-09-23 --- class: center middle ## How does a computer represent color? --- ## The RGB color space .pull-left.width-50[ - red R (0-255): amount of red light - green G (0-255): amount of green light - blue B (0-255): amount of blue light ] -- .pull-right.move-down-1em[ R | G | B | hex code | color ---| --- | --- | --- | --- 0 | 0 | 0 | #000000 | <div style = "background-color: #000000;"> </div> 255 | 0 | 0 | #FF0000 | <div style = "background-color: #FF0000;"> </div> 0 | 255 | 255 | #00FFFF | <div style = "background-color: #00FFFF;"> </div> 128 | 128 | 128 | #808080 | <div style = "background-color: #808080;"> </div> 0 | 158 | 115 | #009E73 | <div style = "background-color: #009E73;"> </div> 255 | 255 | 255 | #FFFFFF | <div style = "background-color: #FFFFFF;"> </div> ] --- ## The RGB color space .center[ ![](color-spaces_files/figure-html/rgb-viz-1.svg)<!-- --> ] --- class: center middle ## Humans cannot reason well about the RGB color space --- ## The HSV color space .pull-left[ - hue H (0-360): hue of the color - saturation S (0-1): colorfulness relative to the brightness of the color - value V (0-1): subjective perception of amount of light emitted ] .pull-right.move-up-1em[ ![](color-spaces_files/figure-html/hsv-viz-single-1.svg)<!-- --> ] --- ## The HSV color space .center[ ![](color-spaces_files/figure-html/hsv-viz-1.svg)<!-- --> ] --- ## The HLS color space .pull-left[ - hue H (0-360): hue of the color - lightness L (0-1): brightness relative to the brightness of a similarly illuminated white - saturation S (0-1): colorfulness relative to the brightness of the color ] .pull-right.move-up-1em[ ![](color-spaces_files/figure-html/hls-viz-single-1.svg)<!-- --> ] --- ## The HLS color space .center[ ![](color-spaces_files/figure-html/hls-viz-1.svg)<!-- --> ] --- class: center middle ## Humans cannot reason well about HSV or HLS either --- ## The Luv color space .pull-left.width-50[ - luminance L (0-100): amount of light emitted - green/red axis u (approx. -100 to 100): amount of green vs. red - blue/yellow axis v (approx. -100 to 100): amount of blue vs. yellow ] .pull-right.move-up-2em[ ![](color-spaces_files/figure-html/luv-viz-single-1.svg)<!-- --> ] --- ## The Luv color space .center[ ![](color-spaces_files/figure-html/luv-viz-1.svg)<!-- --> ] --- ## The HCL color space: polar Luv .center.move-up-1em[ ![](color-spaces_files/figure-html/hcl-viz-single-1.svg)<!-- --> ] --- ## The HCL color space: polar Luv .move-up-1em.center[ ![](color-spaces_files/figure-html/cl-planes-1.svg)<!-- --> ] [//]: # "segment ends here" --- class: center middle ## Explore HCL colors interactively in R --- ## We can explore HCL colors in R ```r colorspace::choose_color() ``` -- <img src = "color-spaces_files/choose_color1.png", width = 35%, style = "position:absolute; top: 20%; left: 52.5%; box-shadow: 3px 5px 3px 1px #00000080;"></img> -- <img src = "color-spaces_files/choose_color2.png", width = 35%, style = "position:absolute; top: 35%; left: 12.5%; box-shadow: 3px 5px 3px 1px #00000080;"></img> -- <img src = "color-spaces_files/choose_color3.png", width = 35%, style = "position:absolute; top: 50%; left: 42.5%; box-shadow: 3px 5px 3px 1px #00000080;"></img> [//]: # "segment ends here" --- class: center middle ## A few considerations when choosing colors --- ## 1. Avoid high chroma -- .pull-left.width-45[ High chroma: Toys <img src = "color-spaces_files/toys-image.jpg", width = 100%, style = "box-shadow: 3px 5px 3px 1px #00000080;"></img> ] ??? [Photo by Pixabay from Pexels](https://www.pexels.com/photo/super-mario-and-yoshi-plastic-figure-163077/) -- .pull-right.width-45[ Low chroma: Elegance <img src = "color-spaces_files/home-interior.jpg", width = 95%, style = "box-shadow: 3px 5px 3px 1px #00000080;"></img> ] ??? [Photo by Saviesa Home from Pexels](https://www.pexels.com/photo/kitchen-island-2089698/) --- ## 2. Be aware of color-vision deficiency 5%–8% of men are color blind! -- <img src = "https://clauswilke.com/dataviz/pitfalls_of_color_use_files/figure-html/red-green-cvd-sim-1.png", width = 100%></img> Red-green color-vision deficiency is the most common --- ## 2. Be aware of color-vision deficiency 5%–8% of men are color blind! <img src = "https://clauswilke.com/dataviz/pitfalls_of_color_use_files/figure-html/blue-green-cvd-sim-1.png", width = 100%></img> Blue-green color-vision deficiency is rare but does occur --- ## 2. Be aware of color-vision deficiency Choose colors that can be distinguished with CVD <img src = "https://clauswilke.com/dataviz/pitfalls_of_color_use_files/figure-html/PiYG-cvd-sim-1.png", width = 100%></img> --- ## Consider using the Okabe-Ito scale .center[ <img src = "https://clauswilke.com/dataviz/pitfalls_of_color_use_files/figure-html/palette-Okabe-Ito-1.png", width = 100%></img> ] .tiny-font[ Name | Hex code | R, G, B (0-255) :---------- | :------- | :-------- orange | #E69F00 | 230, 159, 0 sky blue | #56B4E9 | 86, 180, 233 bluish green | #009E73 | 0, 158, 115 yellow | #F0E442 | 240, 228, 66 blue | #0072B2 | 0, 114, 178 vermilion | #D55E00 | 213, 94, 0 reddish purple | #CC79A7 | 204, 121, 167 black | #000000 | 0, 0, 0 ] ??? Figure from [Claus O. Wilke. Fundamentals of Data Visualization. O'Reilly, 2019.](https://clauswilke.com/dataviz) --- ## CVD is worse for thin lines and tiny dots .move-up-1em.center[ <img src = "https://clauswilke.com/dataviz/pitfalls_of_color_use_files/figure-html/colors-thin-lines-1.png", width = 65%></img> ] --- ## When in doubt, run CVD simulations <div class = "move-up-1em" style = "width: 50%; box-shadow: 3px 5px 3px 1px #00000080; padding: 8px;"> .small-font[Original]<br> <img src = "https://clauswilke.com/dataviz/redundant_coding_files/figure-html/iris-scatter-three-shapes-1.png", width = 100%></img> </div> ??? Figure from [Claus O. Wilke. Fundamentals of Data Visualization. O'Reilly, 2019.](https://clauswilke.com/dataviz) --- ## When in doubt, run CVD simulations <div class = "move-up-1em" style = "width: 50%; box-shadow: 3px 5px 3px 1px #00000080; padding: 8px;"> .small-font[Original]<br> <img src = "https://clauswilke.com/dataviz/redundant_coding_files/figure-html/iris-scatter-three-shapes-1.png", width = 100%></img> </div> <img src = "https://clauswilke.com/dataviz/redundant_coding_files/figure-html/iris-scatter-three-shapes-cvd-1.png", width = 60% style = "position: absolute; top: 22%; left: 30%; box-shadow: 3px 5px 3px 1px #00000080; padding: 16px 8px 8px 16px; background: white"></img> ??? Figures from [Claus O. Wilke. Fundamentals of Data Visualization. O'Reilly, 2019.](https://clauswilke.com/dataviz) [//]: # "segment ends here" --- ## Further reading - Fundamentals of Data Visualization: [Chapter 19: Common pitfalls of color use](https://clauswilke.com/dataviz/color-pitfalls.html) - Wikipedia: [HSL and HSV](https://en.wikipedia.org/wiki/HSL_and_HSV) - **colorspace** package documentation: [Color Spaces](https://colorspace.r-forge.r-project.org/articles/color_spaces.html) - **colorspace** package documentation: [Apps for Choosing Colors and Palettes Interactively](https://colorspace.r-forge.r-project.org/articles/hclwizard.html)
